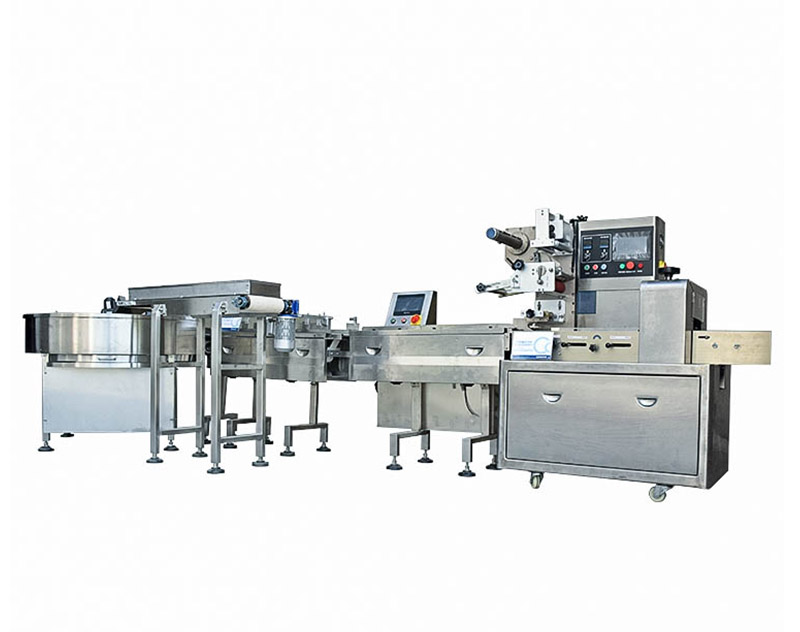

High-Speed Disk Material Packing Line

    >>Application:

    Mainly used for conveying, arranging, feeding and packing of square, round or strip products such as daily necessities, chemicals, medicines, hardware and others without hand contact with products in the packing process, preventing food from second pollution.

>>Featurers:

1. The front conveyor belt of this line can be connected with the outfeed conveyor belt of user’s front-end production line for fullautomatic continuous feeding and packing, or by manual products dumping on the conveyor belt for conveying and packing.

2. The packing line can be customized according to user’s individual requirements.

3. With multi-stage frequency conversion for speed adjustment, servo control and intelligent PLC control system, it is characteristic of simple operation, stable running, high control accuracy and low energy consumption.

4. Color LCD touch screen with intuitive HMI display for parameters setting. Fault self-diagnostic display on the screen helps trouble shooting.

5. The data memorystorage function helps to change product sizes.

6. Automatic defective product rejecting function is available to ensure continuity and stability of production.

7. High precision and high sensitivity SICK brand photo sensor tracking system ensures accurate product positioning.

8. The machine configuration is made of complete stainless steel and alu-alloy profiles. With user-friendly design, it is simple and fast in installation, disassembly, repair and maintenance.

9. At user’s demand, extra units of code printer, inkjet printer, air charging device or alcohol spray device can be equipped on the machine for different purpose.

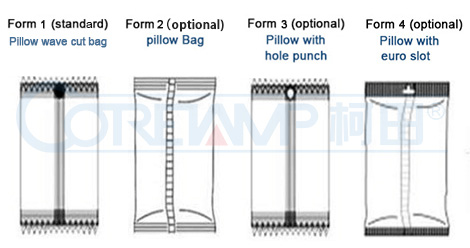

>>Bag Type

High-Speed Disk Material Packing Line



Model
Disk Material Packing Line
Master feeding belt width
600/800/1000/1200mm
Packing capacity
50-200bags/min (with standard speed machine);
350bags/min (with high speed machine)
Power supply type
1ph 220V 50Hz or 3 ph 380V 50Hz
Total power
To be finalized according to user’s actual situation.
Outer dimensions
To be finalized according to user’s actual situation.


High-Speed Disk Material Packing Line

*
*
*
*
*
