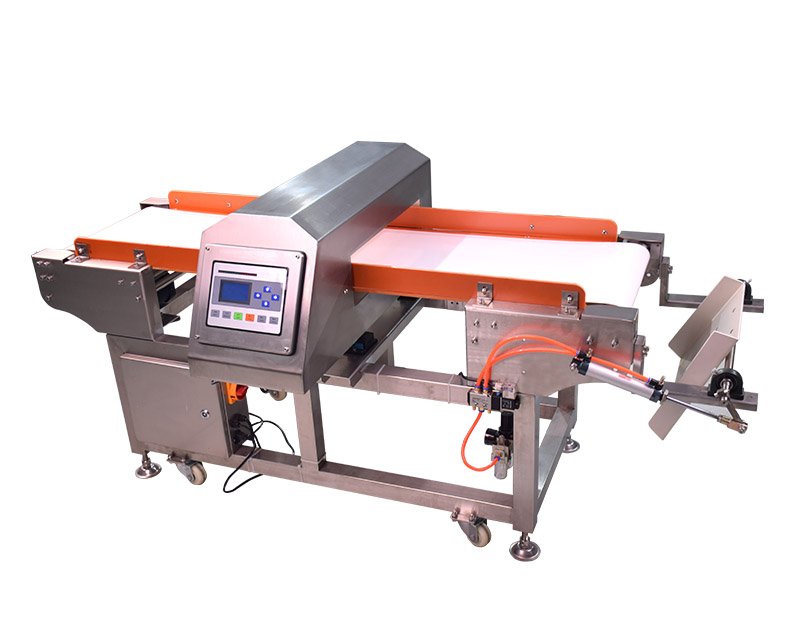

Application:
Apply to detect mental leakage(such as iron, copper, lead. stainless steel, etc) fallen in material and goods, and automatically.
Features:
· Analog design is combined with digital design. greatly improving relia bility a nd intelligence.
· Adopt new touch screen input and large scale integrated circuit CPU collects analog signal.
· Adopt the set of user-friendly interface. ensuring that the entire operation is simple, human.
· Seen at a glance and all commands can be done by operating the interface.
· Dynamically and visually display the dynamic test results of Fe and SUS, the sensitivity of current automatically.
Specifications:
| Type | LD-100 | LD-150 | LD-200 | LD-250 | LD-300 |
| Detecting window height(mm) | 100 | 150 | 200 | 250 | 300 |
| Effectivedetecting width(MAX)(mm) | 400 | 400 | 440 | 440 | 440 |
| Iron ball-steel ball(mm) | 0.8-1.0 | 1.0-1.2 | 1.2-1.5 | 1.5-2.0 | 2.0-2.5 |
| 304Sus(mm)304-306(mm) | 1.5-2.0 | 2.0-2.3 | 2.3-2.5 | 2.5-3.0 | 3.0-3.5 |
| Frame material | Stainless steel | ||||
Application:
Apply to detect mental leakage(such as iron, copper, lead. stainless steel, etc) fallen in material and goods, and automatically.
