Counting Packaging Machine With 8 Vibrate Feeder For Different Material In One Bag
  • Counting Packaging Machine With 8 Vibrate Feeder For Different Material In One Bag
  • Counting Packaging Machine With 8 Vibrate Feeder For Different Material In One Bag

Counting Packaging Machine With 8 Vibrate Feeder For Different Material In One Bag

    Application:

    Packaging machine with 8 vibrate feeder is used for counting and packing different materials into one bag with material counting function, like counting different number custruction toys in one bag,counting virious kinds and numbers of screw, nail, bolt in one bag, etc.

    Kindly Reminder:

    We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.


Features:

1. High precision structure for simple and easy operating and repairing.

2. Single-chip CPU,step-motor,easy and accurate to set the bag length.

3. Own simple circuitry and outstanding function.

4. Be able to complete the whole procedure of filling,bagging,date printing,charging(exhausting) automatically.

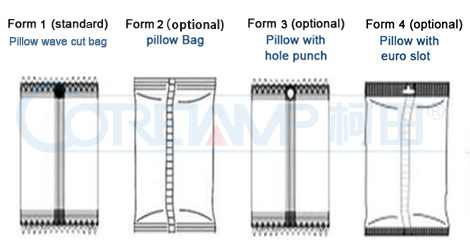

Bag Type:

Packaging Machine With 8 Vibrator For Defferent Material In One Bag

Specification:

ModelZV-420ZV-520ZV-720
Film WidthMax.420mmMax.520mmMax.720mm
Bag Length80-300mm80-350mm100-500mm
Bag Width60-200mm100-250mm180-350mm
Roll DiameterMax.320mmMax.320mmMax.320mm
Film Thickness0.04-0.12mm0.04-0.12mm0.04-0.12mm
Packing Speed5-60bag/min5-60bag/min5-55bag/min
Power220V 50/60Hz 2KW220V 50/60Hz 3KW220V 50/60Hz 3KW
Machine Size(L)1217*(W)1015*(H)1343mm(L)1488*(W)1080*(H)1490mm(L)1780*(W)1350*(H)2050mm
Machine WeightAbout 650kgAbout 680kgAbout 750kg
Option Device

Two synchronous belt device, air filling device, angle fold device,

automatic rectifying device, hole-punching device, link bag device.

Counting Packaging Machine With 8 Vibrate Feeder For Defferent Material In One Bag

Counting Packaging Machine With 8 Vibrate Feeder



*
*
*
*
*
